In this post, let's see how to use Azure APIM as a Negioate Server for Azure SignalR Service.

Let's start with a background.

I have an Angular client application that uses microsoft/signalr to communicate with Azure SignalR Service and the negotiation is done over an Azure Function that uses SignalRConnectionInfoInput.

[Function("Negotiate")]
public async Task<HttpResponseData> Negotiate(
    [HttpTrigger(AuthorizationLevel.Anonymous, "get", "post", Route = null)] HttpRequestData request,
    [SignalRConnectionInfoInput(HubName = SignalR.StreamlineHub, UserId = "{headers.x-ms-signalr-userid}")] string connectionInfo)
{
    // TODO: Read Authorization header and validate token

    HttpResponseData response = request.CreateResponse(HttpStatusCode.OK);
    await response.WriteStringAsync(connectionInfo);

    return response;
}

So basically before the client application can connect to Azure SignalR Service, it calls the above endpoint which will return the Azure SignalR Service endpoint URL and a valid access token. Then it starts communicating with the Azure SignalR Service using the chosen Transport method, in my case it's WebSockets.

let options = {
    headers: {
        'x-ms-signalr-userid': this.tenantUserId,
        'x-authorization': 'Bearer ' + this.oidcSecurityService.getAccessToken()
    },
    transport: signalR.HttpTransportType.WebSockets,
};

this.hubConnection = new signalR.HubConnectionBuilder()
    .withUrl("https://{some-azure-function}.azurewebsites.net/api", options)
    .withAutomaticReconnect()
    .build();

await this.hubConnection.start();

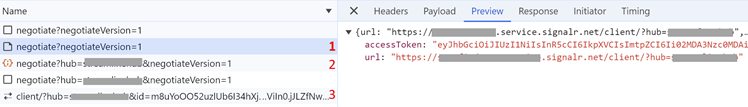

The main flow of events from the client application side,

1. POST: https://{some-azure-function}.azurewebsites.net/api/negotiate, to retrieve the Azure SignalR Service service endpoint URL and a valid access token.

1. Reteieve Azure SignalR Service URL and an access token

2. POST: https://{some-signalr-service}.service.signalr.net/client/negotiate, the returned URL from previes call). This is where actual Negotiation happens with Azure SignalR Service. The response contains connectionId, which identifies the connection on the server and the list of transports that the server supports.

2. Negotiate with Azure SignalR Service

3. WebSocket connection to GET: wss://{some-signalr-service}.service.signalr.net/client/?hub={myHubName}&id={connectionToken}&access_token={accessToken}

3. WebSocket Connection

Now I needed to remove this Azure Function and instead expose Azure SignalR Service via APIM.

Let's start modifying APIM by adding the required APIs for WebSocket transport as follows.

1. Add a HTTP API:

Display name: SignalR negotiate
Web service URL: https://{some-signalr-service}.service.signalr.net/client/negotiate/
API URL suffix: client/negotiate/
Add two operations, and saving with the following parameters:

negotiate preflight

Display name: negotiate preflight
URL: OPTIONS /

negotiate

Display name: negotiate
URL: POST /

2. Add a WebSocket API:

Display name: SignalR connect
Web service URL: wss://{some-signalr-service}.service.signalr.net/client/
API URL suffix: client/

Now the APIs are added, go to the Settings tab in each of these APIs and uncheck Subscription required.

Now let's configure the policies for these APIs.

1. HTTP API:

All Operations

<policies>
  <inbound>
    <cors allow-credentials="true">
      <allowed-origins>
        <origin>https://localhost:4200</origin>
        <!-- TODO: Add other origins-->
      </allowed-origins>
      <allowed-methods>
        <method>*</method>
      </allowed-methods>
      <allowed-headers>
        <header>*</header>
      </allowed-headers>
      <expose-headers>
        <header>*</header>
      </expose-headers>
    </cors>
    <validate-jwt header-name="x-authorization" failed-validation-httpcode="401" failed-validation-error-message="Access token is missing or invalid." require-expiration-time="false">
      <!--Read Authorization header and validate token, not part of this-->
    </validate-jwt>
    <base />
  </inbound>
  <backend>
    <base />
  </backend>
  <outbound>
    <base />
  </outbound>
  <on-error>
    <base />
  </on-error>
</policies>

negotiate

<policies>
  <inbound>
    <base />
    <!--Step 1: Use a managed identity to get an access token for the SignalR service.-->
    <authentication-managed-identity resource="https://signalr.azure.com"
                                     client-id="{Managed_Identity_Client_ID}"
                                     output-token-variable-name="mi-access-token"
                                     ignore-error="false" />
    <!--Step 2: Use the access token to get a SignalR client access token.-->
    <!--NOTE: In production environments, we don't want UserId to be in a HTTP header, instead extract from JWT etc.-->
    <send-request mode="new" response-variable-name="tokenResponse" timeout="20" ignore-error="false">
      <set-url>@("https://{some-signalr-service}.service.signalr.net/api/hubs/{my_hub_name}/:generateToken?api-version=2023-07-01&userId=" + context.Request.Headers.GetValueOrDefault("x-ms-signalr-userid",""))</set-url>
      <set-method>POST</set-method>
      <set-header name="Authorization" exists-action="override">
        <value>@("Bearer " + (string)context.Variables["mi-access-token"])</value>
      </set-header>
    </send-request>
    <!--Step 3: Extract the client access token from the response and set it as a variable.-->
    <set-variable name="client-access-token" value="@(((IResponse)context.Variables["tokenResponse"]).Body.As<JObject>()["token"].ToString())" />
    <!--Step 4: Set the client access token as a header in the request to the SignalR service.-->
    <set-header name="Authorization" exists-action="override">
      <value>@("Bearer " + (string)context.Variables["client-access-token"])</value>
    </set-header>
    <!--Step 5: Set the hub name in the query parameter.-->
    <set-query-parameter name="hub" exists-action="override">
      <value>{myhubName}</value>
    </set-query-parameter>
  </inbound>
  <backend>
    <base />
  </backend>
  <outbound>
    <base />
    <!--Step 6: Modify the response adding the client access token to the response body.-->
    <return-response>
      <set-status code="200" reason="OK" />
      <set-header name="Content-Type" exists-action="override">
        <value>application/json</value>
      </set-header>
      <set-body template="none">@{
        JToken body = context.Response.Body.As<JToken>();
        body["accessToken"] = (string)context.Variables["client-access-token"];
        return JsonConvert.SerializeObject(body, Newtonsoft.Json.Formatting.Indented);
      }</set-body>
    </return-response>
  </outbound>
  <on-error>
    <base />
  </on-error>
</policies>

Here in Step 1, I am using authentication-managed-identity. In order for this, I have modified Access Control (IAM) of my Azure SignalR Service granting SignalR Service Owner to the managed identity I am using.

So basically what's happening here as a summary,

Acquire a token using a managed identity to communicate with SignalR Service
Call SignalR Services' generateToken endpoint using the token for managed identity (mi-access-token)
Call the backend using the generated token (client-access-token)
Once the response is received, modify the response by adding an accessToken property with the value of the generated token (client-access-token)

2. WebSocket API:

SignalR connect

<policies>
  <inbound>
    <base />
    <set-query-parameter name="hub" exists-action="override">
      <value>{myhubName}</value>
    </set-query-parameter>
  </inbound>
  <backend>
    <base />
  </backend>
  <outbound>
    <base />
  </outbound>
  <on-error>
    <base />
  </on-error>
</policies>

And that's about it.

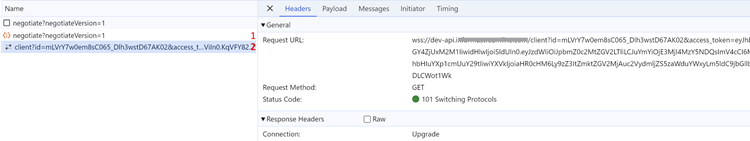

Now the final step is modifying Angular client code to point to APIM and making sure it's getting connected.

let options = {
    headers: {
        'x-ms-signalr-userid': this.tenantUserId,
        'x-authorization': 'Bearer ' + this.oidcSecurityService.getAccessToken()
    },
    transport: signalR.HttpTransportType.WebSockets,
};

this.hubConnection = new signalR.HubConnectionBuilder()
    .withUrl("https://{some-apim}.azure-api.net/client", options)
    .withAutomaticReconnect()
    .build();

await this.hubConnection.start();
