Thursday, October 21, 2021

Sending Per User Notifications using Azure Functions SignalR Service Output Binding

In this post, let's have a look at how to send user Notifications using Azure Functions SignalR Service output binding.

I already have an Azure SignalR Service and Azure Function setup. My client app is an Angular application.

In my Azure Function, I have the Negotiate function as follows.

public static class NegotiateFunction
{
    [FunctionName(FunctionNames.Negotiate)]
    public static SignalRConnectionInfo Run(
        [HttpTrigger(AuthorizationLevel.Function, "get""post", Route = null)] HttpRequest request,
        [SignalRConnectionInfo(
            HubName = "%SignalR_HubName%",
            UserId = "{headers.x-application-user-id}",
            ConnectionStringSetting = "SignalR_ConnectionString")] SignalRConnectionInfo connectionInfo)
    {
        return connectionInfo;
    }
}

Note I am setting the UserId to a custom header (x-application-user-id) I am expecting the client app to send.

Alternatively, you can use imperative binding instead of declarative binding (which is done above). This is helpful when you have clients who aren't sending the header you are looking for UserId. With declarative binding, if the header x-application-user-id isn't set, Negotiate function will throw an error.

Imperative binding can be done as follows.

public class NegotiateFunction
{
    private readonly IConfiguration _configuration;

    public NegotiateFunction(IConfiguration configuration)
    {
        _configuration = configuration;
    }

    [FunctionName(FunctionNames.Negotiate)]
    public async Task<SignalRConnectionInfo> Run(
        [HttpTrigger(AuthorizationLevel.Function, "get""post", Route = null)] HttpRequest request,
        IBinder binder)
    {
        string userId = request.Headers["x-application-user-id"];

        SignalRConnectionInfoAttribute attribute = new SignalRConnectionInfoAttribute
        {
            HubName = _configuration.GetValue<string>("SignalR_HubName"),
            UserId = userId,
            ConnectionStringSetting = "SignalR_ConnectionString"
        };
        SignalRConnectionInfo connectionInfo = await binder.BindAsync<SignalRConnectionInfo>(attribute);

        return connectionInfo;
    }
}

And on my client app, I am building the hubConnection as follows.

this.hubConnection = new signalR.HubConnectionBuilder()
    .withUrl("<azure-functions-base-url>", {
        headers: {
            "x-functions-key""<function key>",
            "x-application-user-id""<user-id>"
        }
    })
    .withAutomaticReconnect()
    .configureLogging(signalR.LogLevel.Information)
    .build();

Once that is done and the connection is started, we should be seeing the UserId in the access token when the client negotiates with Azure SignalR Service (after negotiating with Function App and receiving the connection info).

Access Token

Now we just need to set the UserId when adding a SignalRMessage via the output binding in our Function App, something like this.

public static class SendApplicationUserNotificationFunction
{
    [FunctionName(FunctionNames.SendApplicationUserNotification)]
    public static async Task<IActionResult> Run(
        [HttpTrigger(AuthorizationLevel.Function, "post")] HttpRequest request,
        [SignalR(
            HubName = "%SignalR_HubName%",
            ConnectionStringSetting = "SignalR_ConnectionString")]IAsyncCollector<SignalRMessage> signalRMessageCollector)
    {
        var requestBody = await new StreamReader(request.Body).ReadToEndAsync();
        ApplicationUserNotification applicationUserNotification = JsonConvert.DeserializeObject<ApplicationUserNotification>(requestBody);

        await signalRMessageCollector.AddAsync(new SignalRMessage
        {
            Target = SignalRTargets.AddApplicationUserNotification,
            Arguments = new[] { applicationUserNotification },
            UserId = applicationUserNotification.ApplicationUserId,
        });

        return new OkResult();
    }
}

So I have two users logged in to my client application, UserId: 1 and 110. And I am sending a message to UserId: 1.

I can see UserId: 1 received the message.

UserId: 1 received the message
But the UserId: 110 hasn't.

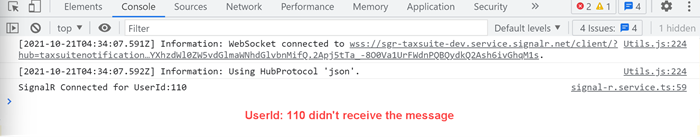

UserId: 110 didn't receive the message
Hope this helps.

Happy Coding.

Regards,
Jaliya

Wednesday, October 20, 2021

EF Core 6.0: Introducing Pre-convention Model Configuration

In this post let's have a look at another feature EF Core 6.0 brings to the table.

Consider in your context, you have this specific type, and you want to maintain a similar configuration for that property throughout all your entities.

Let's go by a small example. Say I have multiple decimal properties in my entities, and I want all of them to be decimal(18,4) instead of decimal(18,2) which is the default.
public class OrderItem
{
    public int Id { getset; }

    public int OrderId { getset; }

    public decimal Amount { getset; }

    public decimal Discount { getset; }
}
Here I have two decimal properties in the same Entity. If I want to configure these to be decimal(18,4), I need to update the configuration for each property.

EF Core 6.0 exposes this new method ConfigureConventions(ModelConfigurationBuilder configurationBuilder) in DbContext which we can now override.
protected override void ConfigureConventions(ModelConfigurationBuilder configurationBuilder)
{
    configurationBuilder
       .Properties<decimal>()
       .HavePrecision(18, 4);
}
And if we create a migration for this, we can see EF is using decimal(18,4) for all my decimal properties without me having to configure for each of the properties.
ConfigureConventions
And of course, if you want, you can still override this behavior per property.
protected override void OnModelCreating(ModelBuilder modelBuilder)
{
    // other configuration

    modelBuilder.Entity<OrderItem>(builder =>
    {
        builder
            .Property(x => x.Discount)
            .HasPrecision(18, 2);
    });
}
And if you add in a migration now,
Override per property

You can see only for the Discount property Scale is changed.

There are other great use cases, you can read more on,
   Pre-convention model configuration

Happy Coding.

Regards,
Jaliya

Sunday, October 17, 2021

EF Core 6.0: Introducing Support for SQL Server Temporal Tables

In this post, let's have a look at one of the nicest features coming with EF Core 6.0 (Actually I shouldn't be saying it's coming, it's already available. As of the day I am writing this post, we now have EF Core 6.0 RC2, support for SQL Server Temporal Tables was initially introduced with EF Core 6.0 RC1). It's one of the Highly requested features in EF Core 6.0.

Consider I have the following Entity.
public class Category
{
    public int Id { getset; }

    public string Name { getset; }

    public string Description { getset; }
}
We can enable Temporal Tables through the ModelBuilder or IEntityTypeConfiguration<TEntity> (these are just things you already know and have been there forever). For simplicity, I will just use the ModelBuilder.
protected override void OnModelCreating(ModelBuilder modelBuilder)
{
    modelBuilder.Entity<Category>(builder =>
    {
        builder
            .ToTable(x => x.IsTemporal());
    });
}
If we add in a migration for this, we will get something like this.
Create Table with Temporal Table Support
Here I am just creating a Category table with Temporal Table support from the first place. Oftentimes, we will already have the entities which we need to enable Temporal Table support. It's possible as well, just update the table with IsTemporal() .
Alter Table to support Temporal Tables
You can see the Period Columns and History table has default names. If you want, you can override those through TemporalTableBuilder as follows.
builder
    .ToTable(x => x.IsTemporal(x =>
        {
            x.HasPeriodStart("PeriodFrom");
            x.HasPeriodEnd("PeriodTo");
            x.UseHistoryTable($"{nameof(Category)}HistoricalData");
        })
    );
For simplicity, I am going to use the defaults.

And once the migration is applied, you can see your table now has Temporal Table support.

EF Core 6.0, also provides support for querying historical data which personally I am finding very much helpful.

Consider the following.
Category category = new() { Name = "Category A", Description = "Category A Description" };
await context.Categories.AddAsync(category);
await context.SaveChangesAsync();

await Task.Delay(5000);

category.Description = "Category A Description Updated";
context.Categories.Update(category);
await context.SaveChangesAsync();
Here I am just creating a new Category and then after 5 seconds, I am just doing an update to the Category Description.

Now I can query the history data as follows.
var categoryHistories = await context.Categories
    .TemporalAll()
    .Where(x => x.Id == category.Id)
    .OrderBy(x => EF.Property<DateTime>(x, "PeriodStart"))
    .Select(x => new
    {
        Employee = x,
        PeriodStart = EF.Property<DateTime>(x, "PeriodStart"),
        PeriodEnd = EF.Property<DateTime>(x, "PeriodEnd")
    })
    .ToListAsync();

foreach (var item in categoryHistories)
{
    Console.WriteLine($"Description: {item.Employee.Description}, " + $"Start: {item.PeriodStart} - End: {item.PeriodEnd}");
}
This would give an output something like the following.
Querying Historical Data
The important part here is the TemporalAll() method. We have a couple of options there.
  • TemporalAll
    • Returns all rows in the historical data.
  • TemporalAsOf
    • Returns a single row that was active (current) at the given UTC time
  • TemporalFromTo
    • Returns all rows that were active between two given UTC times
  • TemporalBetween
    • The same as TemporalFromTo, except that rows are included that became active on the upper boundary
  • TemporalContainedIn
    • Returns all rows that started being active and ended being active between two given UTC times.
Hope this helps.

Happy Coding.

Regards,
Jaliya

Friday, October 15, 2021

EF Core 5.0: Split Queries

In this post, let's have a look at this nice feature "Split Queries" that got introduced with  EF Core 5.0.

Consider you have the following Models in your DbContext.

public class Category
{
    public int Id { getset; }

    public string Name { getset; }

    public ICollection<Product> Products { getset; }
}

public class Product
{
    public int Id { getset; }

    public string Name { getset; }

    public int CategoryId { getset; }

    public ICollection<Item> Items { getset; }
}

public class Item
{
    public int Id { getset; }

    public string Name { getset; }

    public int ProductId { getset; }
}

And if you do a query something like this,

List<Category> query = await context.Categories
    .
Include(x => x.Products)
        .
ThenInclude(x => x.Items)
    .
ToListAsync();
The generated query would be something like this.
SELECT [c].[Id], [c].[Name], [t].[Id], [t].[CategoryId], [t].[Name], [t].[Id0], [t].[Name0], [t].[ProductId]
FROM [Categories] AS [c]
LEFT JOIN (
    SELECT [p].[Id], [p].[CategoryId], [p].[Name], [i].[Id] AS [Id0], [i].[Name] AS [Name0], [i].[ProductId]
    FROM [Products] AS [p]
    LEFT JOIN [Item] AS [i] ON [p].[Id] = [i].[ProductId]
) AS [t] ON [c].[Id] = [t].[CategoryId]
ORDER BY [c].[Id], [t].[Id], [t].[Id0]
And at the same time, you might see a warning like this.

Compiling a query which loads related collections for more than one collection navigation either via 'Include' or through projection but no 'QuerySplittingBehavior' has been configured. By default Entity Framework will use 'QuerySplittingBehavior.SingleQuery' which can potentially result in slow query performance. To identify the query that's triggering this warning call 'ConfigureWarnings(w => w.Throw(RelationalEventId.MultipleCollectionIncludeWarning))'

So why is that?

Let's look at the result of this query.

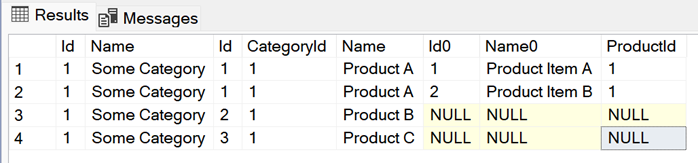

Result: SingleQuery
As you can see, I have only just one Category in the table, but the Category information is duplicated based on how many Products a particular Category has and how many Items each Product has. This duplication leads to the problem called "Cartesian Explosion"

Now how to address this?

As mentioned in the warning, by default Entity Framework will use 'QuerySplittingBehavior.SingleQuery'. We can change this behavior,
  • Per query or
  • Change the default globally
Per query, we can achieve this by adding AsSplitQuery(),
List<Category> query = await context.Categories
    .
Include(x => x.Products)
        .
ThenInclude(x => x.Items)
    .
AsSplitQuery()
    .
ToListAsync();
And now the generated query would change as follows,
SELECT [c].[Id], [c].[Name]
FROM [Categories] AS [c]
ORDER BY [c].[Id]

SELECT [p].[Id], [p].[CategoryId], [p].[Name], [c].[Id]
FROM [Categories] AS [c]
INNER JOIN [Products] AS [p] ON [c].[Id] = [p].[CategoryId]
ORDER BY [c].[Id], [p].[Id]

SELECT [i].[Id], [i].[Name], [i].[ProductId], [c].[Id], [p].[Id]
FROM [Categories] AS [c]
INNER JOIN [Products] AS [p] ON [c].[Id] = [p].[CategoryId]
INNER JOIN [Item] AS [i] ON [p].[Id] = [i].[ProductId]
ORDER BY [c].[Id], [p].[Id]
This would result in
Result: SplitQuery
Or we can change the QuerySplittingBehavior globally.
protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
{
    optionsBuilder
        .
UseSqlServer(@"Server=(localdb)\mssqllocaldb;Database=EFCore5;Trusted_Connection=True"options =>
        {
            options.UseQuerySplittingBehavior(QuerySplittingBehavior.SplitQuery);
        })
        .EnableSensitiveDataLogging()
        .LogTo(Console.WriteLine, LogLevel.Information);
}
Then for some of the queries, if you want to use SingleQuery behavior, you can do AsSingleQuery().
List<Category> query = await context.Categories
    .
Include(x => x.Products)
        .
ThenInclude(x => x.Items)
    .
AsSingleQuery()
    .
ToListAsync();
Now there are some important factors to consider when using Split Queries.
  • If you use Split Queries over One-to-One related entities, it has no effect. Those are always loaded via JOINs in the same query, as it has no performance impact.
  • When the query is split, that means multiple round trips to the database.
  • There can be concerns over data consistency if the data is being updated concurrently. Because it's multiple queries.
  • Most databases allow only a single query to be active at any given point (except for SQL Server with Multiple Active Result Sets, Sqlite). So all results from earlier queries must be buffered in your application's memory, which leads to increased memory requirements.
Hope this helps.

Happy Coding.

Regards,
Jaliya

Monday, October 4, 2021

Profiling Azure SQL Database

In this post, let's have a look at how to profile an Azure SQL Database

If it's a database in an Azure SQL Managed Instance, we can use  SQL Server Management Studio (SSMS) Profiler which I believe most of us are comfortable with. but if it's Azure SQL Database, unfortunately we can't use SQL Server Management Studio (SSMS) Profiler. We are going to get an error like this.
SQL Server Profiler: Not Supported
But not to worry. There is still a way to profile an Azure SQL Database.

First, we need to download and install Azure Data Studio. Once that's done, then you need to install SQL Server Profiler extension (currently it's in Preview, but works great).
SQL Server Profile extension
Hint: instead you can install the Admin Pack for SQL Server extension, which will give you a couple of nice extensions (such as SQL Server dacpac, SQL Server Import etc) along with SQL Server Profiler.

Once the SQL Server Profiler extension is installed, first make a connection to the target server.

Then,
  • Open Profiler by pressing Alt+P on Windows, and Ctrl+Alt+P on macOS.
  • To Start/Stop Profiler, click the Start button or press Alt+S on Windows, or Ctrl+Alt+S on macOS.
  • Otherwise, open the command palette and type 'Profiler.'
Profiling Session
I just love this!

Hope this helps.

Happy Coding.

Regards,
Jaliya
