Tuesday, June 24, 2014

Creating an Empty ASP.NET Project Powered by AngularJS using Visual Studio

First of all, I always had trouble with JavaScript. Sometimes back I started using AngularJS and the way AngularJS implements MVC pattern kind of increased my interest towards JavaScript. Currently I am working in a Single Page Application(SPA) powered by AngularJS which communicates with the back end through ASP.NET Web API. I really am seeing the beauty of AngularJS these days.

So if you want to learn AngularJS, of course you need to know how to setup a AngularJS project in Visual Studio. There are couple of Visual Studio templates available like AngularJS SPA Template, which you can download and use with Visual Studio. But in this post, let’s see how you can create one from the scratch.

Let’s power up Visual Studio and create an Empty ASP.NET project (Please note I am using Visual Studio 2013).
ASP.NET Web Application
Empty Project
After creating the project, first let’s add AngularJS to the project using Nuget.

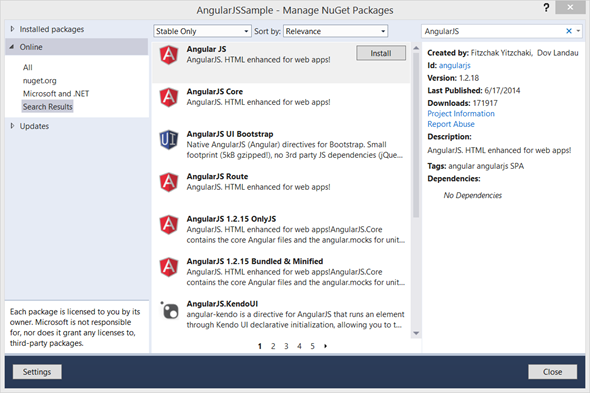

Adding AngularJS through Nuget
Alternatively, you can use Package Manage Console to install AngularJS. Once it gets installed, you can see a new folder named “Scripts” added to the project which contains all the AngularJS files needed to start the project off with.

Now inside my project, let’s create a folder named “App”. The “App” folder is going to be the one folder which will contain all our UI components. Inside “App” folder, let’s create two folders named “controllers” and “views”. “controllers” folder will contain all the AngularJS controllers and “views” folder will contain all the templates (html pages). All the templates will be rendered inside one html page. Let’s create that main html page named “Index.html” inside “App” folder.
Add new HTML page
Index.html
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
    <title>Sample AngularJS project using Visual Studio</title>
</head>
<body>

</body>
</html>
Let’s add a JavaScript file named “app.js” inside the “App” folder and let’s define AngularJS main module there.

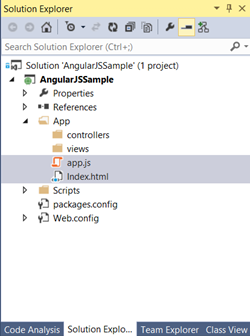

App folder
app.js
var app = angular.module('myApp', ['ngRoute'])
.config(['$routeProvider', function ($routeProvider) {
    $routeProvider
      .when('/', {
          templateUrl: 'views/home.html',
          controller: 'homeController'
      })
      .when('/about', {
          templateUrl: 'views/about.html',
          controller: 'aboutController'
      })
      .otherwise({
          redirectTo: '/'
      });
}])
.controller('mainController', function ($scope) {
    $scope.message = "Main Content";
});;

Here in the “app.js”, there are some couple of key components. Since our application is Single Page Application, we don’t want any page refreshes. Here we are using AngularJS routing capabilities by injecting $routeProvider in AngularJS. There I am saying when the Url is “/” load the “views/home.html” which is bound to “homeController”. When the Url is “/about”, same way load the “views/about.html” which is bound to “aboutController”. There is also a controller defined “mainController”.

Now let’s go ahead with creating "home" and "about" views and controllers. I am adding two JavaScript files named “homeController” and “aboutController” inside “App/controllers” folder.
controllers folder
homeController.js
'use strict';

app.controller('homeController', function ($scope) {
    $scope.message = "Now viewing home!";
});
aboutController.js
'use strict';

app.controller('aboutController', function ($scope) {
    $scope.message = "Now viewing about!";
});
Now let’s create the views.
views folder
home.html
<div ng-controller="homeController">
    <h2>{{message}}</h2>
</div>
about.html
<div ng-controller="aboutController">
    <h2>{{message}}</h2>
</div>

Now let’s modify the “Index.html” integrating all together and defining which displays where.

Index.html
<!DOCTYPE html>
<html xmlns="http://www.w3.org/1999/xhtml" ng-app="myApp">
<head>
    <title>Sample AngularJS project using Visual Studio</title>
    <script src="../Scripts/angular.js"></script>
    <script src="../Scripts/angular-route.js"></script>
    <script src="app.js"></script>
    <script src="controllers/homeController.js"></script>
    <script src="controllers/aboutController.js"></script>
</head>
<body>
    <div>
        <a href="#/">Home</a>
        <a href="#/about">About</a>
    </div>

    <div ng-controller="mainController">
        <h1>{{message}}</h1>
        <div ng-view>
        </div>
    </div>
</body>
</html>

Here first in <html>, I have mentioned ng-app directive, which powers up the AngularJS. Then in the <head></head> section, I have included all the necessary scripts. Then in <body></body> section, first I have added a <div> which will contain links for navigation. For linking to pages, # (hash tag) is used. We don’t want the browser to think we are actually travelling to “home.html” or “about.html”.

Then defined a <div> which is bound to “mainController”. There first I am displaying the value in $scope.message in “mainController”. Then I have a ng-view which defines a angular template and the templates will be injected inside ng-view.

So that’s it. When we run the project I am getting the following output.

Here note the Url is “/”
Home
Here note the Url is “/about”.
About
And when we are navigating between “Home” and “About”, there is no page refreshing.

So hope you found this interesting. I am uploading the full sample to OneDrive. Enjoy!.


Happy Coding.

Regards,
Jaliya
