Saturday, October 31, 2020

Session: Consuming Configuration Data from Azure App Configuration

Delivered an online session for Sri Lanka DevOps Communities October 2020 monthly meetup.

The session was titled Session: Consuming Configuration Data from Azure App Configuration and there I discussed what is Azure App Configuration (AAC) and what was Microsofts' main motivation to develop AAC.

Then demoed how we can consume AAC configuration data from Azure Functions App which references Azure Key Vault (AKV) values, how to setup the local development environment to read values from AAC and AKV, how to setup AAC, AKV using User-Assigned Managed Identity. And then demoed refreshing of configurations using ASP.NET Core Web API.

Session: Consuming Configuration Data from Azure App Configuration
Meetup: SL DevOps Community - October 2020 - Online Meetup
Video: YouTube
Demo Source Code: https://github.com/jaliyaudagedara/AzureAppConfigurationDemo

Happy Coding.

Regards,
Jaliya

Wednesday, October 14, 2020

C# 9.0: Records

C# 9.0 is almost around the corner, we are just less than a month away from .NET Conf 2020, where C# 9.0 along with .NET 5.0 and Visual Studio 16.8.0 will be officially released.

One of the biggest features coming with C# 9.0 is Records. I think it's high time we have a look at what Records are.

You can try out this feature even now with the latest Preview of Visual Studio 2019 (Version 16.8.0 Preview 4 as of today) and .NET 5.0 RC (SDK 5.0.100-rc.2 as of today).

In this post, let's have an overview of what Records are. But before diving in, let's consider the following example using C# 8.

Consider, you have a Person class with just 2 properties, FirstName and LastName.

var person = new Person("John""Doe");

So to be able to do this, I need to create a Person class with 2 properties and then set values to them through the constructor, something like below.

public class Person
{
    public string FirstName { getset; }
    public string LastName { getset; }

    public Person(string firstName, string lastName)
    {
        FirstName = firstName;
        LastName = lastName;
    }
}

Next, say, I am creating another Person with the same FirstName, LastName.

var otherPerson = new Person("John""Joe");

There are often times, I need to compare whether it's the same person. I don't care about the references, I am only concerned about its values. Basically something like this,

bool isTheSamePerson = person == otherPerson;

And for us to be able to something like this, we need to modify Person class to implement IEquatable<T> and override operators.

public class Person : IEquatable<Person>
{
    public string FirstName { get; }
    public string LastName { get; }

    public Person(string firstName, string lastName)
    {
        FirstName = firstName;
        LastName = lastName;
    }

    public bool Equals(Person other) => other is object && FirstName == other.FirstName && LastName == other.LastName;

    public static bool operator ==(Person left, Person right) => left is object ? left.Equals(right) : left is null;

    public static bool operator !=(Person left, Person right) => !(left == right);

    public override bool Equals(object obj) => Equals(obj as Person);

    public override int GetHashCode() => HashCode.Combine(FirstName, LastName);
}

Now say, you want to deconstruct the Person (part of C# 7.0), that's something like this,

(string firstName, string lastName) = person;

To be able to do this, you need to add a Deconstruct method to Person class.

public void Deconstruct(out string firstName, out string lastName)
{
    firstName = FirstName;
    lastName = LastName;
}

And finally, say we want to override Person.ToString() to return $"{FirstName} {LastName}". Yes, that means another method.

public override string ToString() => $"{FirstName} {LastName}";

Suddenly you can see our small class has grown and these functionalities are pretty much we are going need in most of the cases. So our C# 8.0 class is going to look like below with all the above functionality.

public class Person : IEquatable<Person>
{
    public string FirstName { get; }
    public string LastName { get; }

    public Person(string firstName, string lastName)
    {
        FirstName = firstName;
        LastName = lastName;
    }

    public void Deconstruct(out string firstName, out string lastName)
    {
        firstName = FirstName;
        lastName = LastName;
    }

    public bool Equals(Person other) => other is object && FirstName == other.FirstName && LastName == other.LastName;

    public static bool operator ==(Person left, Person right) => left is object ? left.Equals(right) : left is null;

    public static bool operator !=(Person left, Person right) => !(left == right);

    public override bool Equals(object obj) => Equals(obj as Person);

    public override int GetHashCode() => HashCode.Combine(FirstName, LastName);

    public override string ToString() => $"{FirstName} {LastName}";
}

What if we can simplify all this code. Enter Records.

Records

With C# 9.0, you can have all the above functionality available by default by creating a Record of Person instead of a Class of Person.

public record Person(string FirstName, string LastName);

You should see something strange here, we can specify parameters at the record definition level. This form is called positional records. You can still use the traditional syntax, which is defining separate properties and a constructor, etc.

So basically, I can do something like this and I will get a below output.

using System;

var person = new Person("John""Doe");
var otherPerson = new Person("John""Doe");

// Value Comparision
Console.WriteLine($"Value Comparison: {person == otherPerson}");

// Reference Comparision
Console.WriteLine($"Reference Comparison: {ReferenceEquals(personotherPerson)}");

// Deconstruction
(string firstNamestring lastName) = person;
Console.WriteLine($"Deconstuct: {firstName} {lastName}");

// ToString()
Console.WriteLine($"ToString(): {person}");

public record Person(string FirstNamestring LastName);

Output:

Value Comparison: True
Reference Comparison: False
Deconstuct: John Doe
ToString(): Person { FirstName = John, LastName = Doe }

So what is this new type, Record?

Records are reference types and are immutable by default. There is a nice read here What's new in C# 9.0: Record types, I highly recommend you to read that for a more detailed explanation of records and its internal implementation.

Another nice thing with Records is, records support with-expressions. It's something like this,

var someOtherPerson = person with { FirstName = "Jane" };

So this will create a new object someOtherPerson, and all the properties of person will be shallow copied, but the specified properties will be changed.  I can verify that by printing someOtherPerson,

Console.WriteLine(someOtherPerson);
// Person { FirstName = Jane, LastName = Doe }

If you try to set values to FirstName/LastName properties without using the object initializer, we can see something interesting here.

init accessor
Here we can see a new accessor called init. It's another feature coming with C# 9.0. Properties that have init accessor can be set only in the object initializer or in the instance constructor. So when a record is defined using positional record syntax, all its arguments will have init accessor.

Let's modify the person record a bit by adding another property.

public record Person(string FirstNamestring LastName)
{
    public int Age { getset; }
}

So if we try to set property values,

someOtherPerson.LastName = "Smith"// this is NOT ALLOWED, because it has init accessor
someOtherPerson.Age = 20; // this is allowed

Hope that's enough to get you started on exploring more on records.

If you haven't saved the date of .NET Conf 2020, just spend like a minute and do save the date right now.

Happy Coding.

Regards,
Jaliya

Thursday, October 1, 2020

Azure Functions: Consuming Configuration Data from Azure App Configuration and Azure Key Vault

Azure App Configuration is a managed service to centrally manage application and feature settings. One of the nicest things about AAC is, it can consume secrets from AKV. In this post, let's see how we can consume Configuration Data from Azure App Configuration (AAC) and Azure Key Vault (AKV).

Before starting off, I am assuming that you have an understanding of how to set up AAC and AKV (here is a post I wrote a couple of months back about creating AAC: ASP.NET Core Application Reading Configuration from Azure App Configuration). And I am assuming you know how to set up dependency injection using FunctionsStartup in an Azure Function App (If you want to refresh your memories, may be this can help Dependency Injection in Azure Functions).

So consider that we have an AAC configured with AKV secrets (Here I have only 1 AKV Reference).

Azure App Configuration with AKV References
So consider I have an Azure Function App with DI setup.

Like 10 days back, Microsoft.Azure.Functions.Extensions version: 1.1.0 was released and with that, one of the new features that got available is Configuration source customization. Basically, that is, in the Startup class, now you can override the ConfigureAppConfiguration.

public override void ConfigureAppConfiguration(IFunctionsConfigurationBuilder builder)
{
    FunctionsHostBuilderContext context = builder.GetContext();

    builder.ConfigurationBuilder
        .AddJsonFile(Path.Combine(context.ApplicationRootPath, "appsettings.json"), optional: true, reloadOnChange: false)
        .AddJsonFile(Path.Combine(context.ApplicationRootPath, $"appsettings.{context.EnvironmentName}.json"), optional: true, reloadOnChange: false)
        .AddEnvironmentVariables();

    var aacEndpoint = Environment.GetEnvironmentVariable("AzureAppConfiguration_BaseUrl");
    if (!string.IsNullOrEmpty(aacEndpoint))
    {
        builder.ConfigurationBuilder
            .AddAzureAppConfiguration(options =>
            {
                var tokenCredential = new Azure.Identity.DefaultAzureCredential();
                options
                    .Connect(new Uri(aacEndpoint), tokenCredential)
                    .Select(KeyFilter.Any, LabelFilter.Null)
                    .Select(KeyFilter.Any, Environment.GetEnvironmentVariable("AzureAppConfiguration_Label"))
                    .ConfigureKeyVault(kv =>
                    {
                        kv.SetCredential(tokenCredential);
                    });
            });
    }
}

So in the above the code example, I have added appsettings.json, appsettings.{environment}.json as configuration sources (yes, you can do that). And if I have an AAC endpoint (something like https://something.azconfig.io), I have added AAC as a configuration source. You can notice that, instead of using AAC connection string, I have used the Connect overload that uses AAC endpoint Uri and TokenCredential. For TokenCredential, I have used DefaultAzureCredentialDefaultAzureCredential provides a default TokenCredential authentication flow for applications that will be deployed to Azure and it will be trying different credential types on a specific order (please go through the above link to find about the order).

Now let's have a look at how things are going to work on Local Development Environment using Visual Studio and when deployed to Azure (I am only covering running in Azure scenario here in this post).

Local Development Environment using Visual Studio

So in the local development environment using Visual Studio, for you to consume AAC configured with an AKV, you need to do the following steps.

  • Make sure, you have the latest Azure CLI installed
  • Correct account is set from Visual Studio: Tools -> Options -> Azure Service Authentication
    • This account needs to be given App Configuration Data Reader role in AAC (through Access control (IAM) in AAC)
    • In AKV, an access policy is defined for this Account
Tools -> Options -> Azure Service Authentication
AAC - IAM - App Configuration Data Reader role
AKV - Access Policies
Note: In AKV, here in my case, I have all the permissions. You might need to give only Get like I have given for Manage Identities above me.
  • For the Azure CLI logged in account, if you have access to multiple subscriptions in your tenant or in different tenants, make sure the subscription where your AAC lives, is selected as the default subscription.
// show the default subscription
az account show

// list all the subscriptions
az account list;

//set default subscription
az account set --subscription [subscription-id]

With the above steps, you should be able to consume AAC with AKV when your Function App is running locally in Visual Studio.

Note: It's better not to consume AAC when running locally, usually what I do is wrap adding AAC configuration in a #if condition or environment check condition and use AAC only in production. For the local development environment, we can have the configuration inside appsettings.Development.json or something like that.

Deployed to Azure

When the Azure Function app is deployed to Azure, you can use either System Assigned Managed Identity or User Assigned Managed Identity

System Assigned Managed Identity

For System Assigned Managed Identity, you can have a look at this post Consume Secrets in an Azure Key Vault from an Azure Function App on how you can setup System Assigned Managed Identity in Azure Function App. Then in addition to those steps in that post, you need to give your Managed Identity, App Configuration Data Reader role in your AAC (like we did for Visual Studio Account).

User Assigned Managed Identity

For User Assigned Managed Identity, you need to create an User Assigned Managed Identity in Azure which is another managed service.

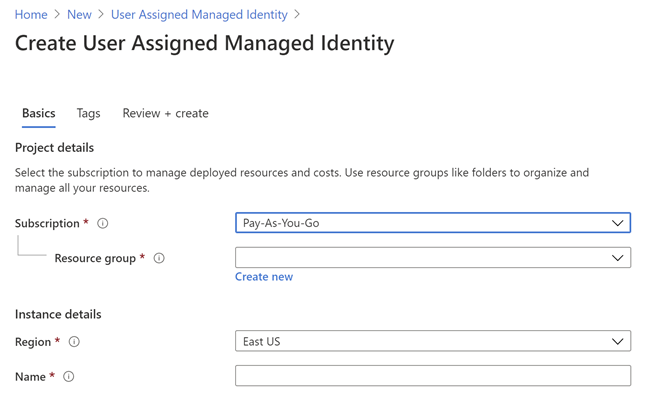

Create User Assigned Managed Identity

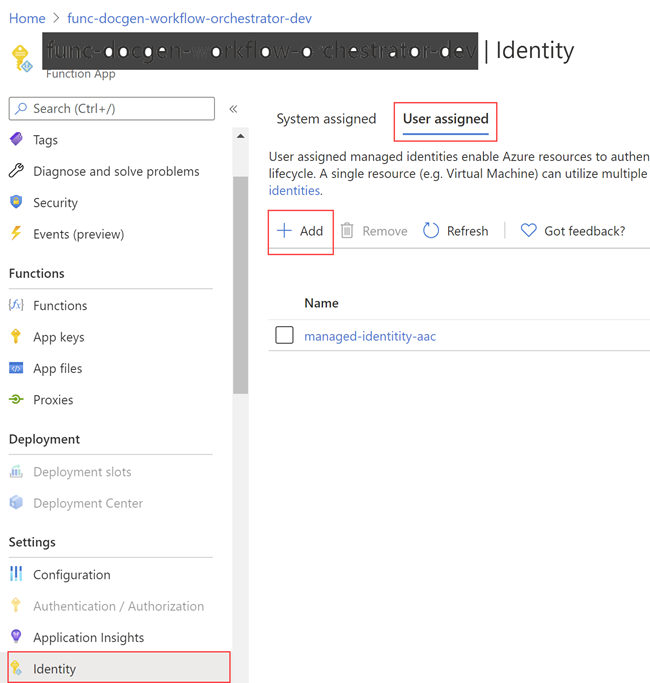

Then inside your Function App, you need to assign that managed identity to the function app. You can do this by, going to Identity -> User Assigned -> Add.


Then again like previous scenarios, you need to give that identity App Configuration Data Reader role in your AAC and define an access policy in AKV.

And in the Configuration add an app setting, AZURE_CLIENT_ID with the value of ClientId in the created Managed Identity.

So that's it.

Hope this helps.

Happy Coding.

Regards,
Jaliya
