One of the nicest things that can be done using
NServiceBus is we can schedule a task or an action/lambda, to be executed repeatedly. In this post let’s see it in action in which I am going to periodically send messages from one
NServiceBus to another
NServiceBus host.
I will start off with the application by creating a blank solution named “NServiceBusScheduledTaskSample”.
 |
| Blank Solution |
For this solution, I am adding three class library projects named “NServiceBusScheduledTaskSample.
Server”, “NServiceBusScheduledTaskSample.
Client” and “NServiceBusScheduledTaskSample.
Messages”. “NServiceBusScheduledTaskSample.
Server” project is responsible for sending messages to “NServiceBusScheduledTaskSample.
Client”. I am deleting default Class1.cs from all the three projects. Now I am running
NServiceBus.Host nuget package on “NServiceBusScheduledTaskSample.
Server” and “NServiceBusScheduledTaskSample.
Client” projects using Package Manager Console.
 |

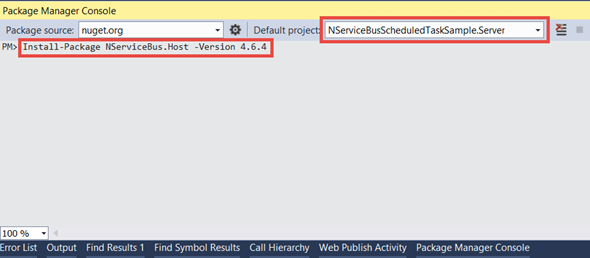

| Install on Server |

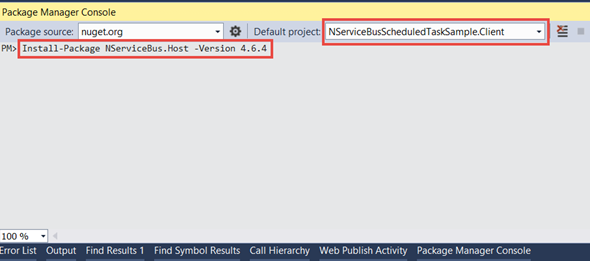

Install on Client
 |
| Install on Client |
Once Package Manager Console completed installing all the required files, you can see in both “NServiceBusScheduledTaskSample.Server” and “NServiceBusScheduledTaskSample.Client” projects, there is a new class added named “EndpointConfig”.
Now let’s move into Server Project. I am keeping the “EndpointConfig” class as it is. If you are running scheduled tasks, inherting “EndpointConfig” from AsA_Server or AsA_Publisher is a must. Because if your “EndpointConfig” inherits from AsA_Client, then the TimeoutManager is disabled and we need that to run scheduled tasks. So after keeping “EndpointConfig” as it is, I am adding a new class to the project and I am naming it as “MyTask”. I am implementing an interface named “IWantToRunWhenBusStartsAndStops” on “MyTask”.
public class MyTask : IWantToRunWhenBusStartsAndStops
{
public IBus Bus { get; set; }
public void Start()
{
}
public void Stop()
{
}
}
Now here in “Start()”, I am planning on sending messages to my Client project. For that between the Server and Client, I need to share messages. Those messages, I am going to put in Messages Project. I am adding a new class named “MyMessage” inside Messages project. “MyMessage” is implementing “ICommand”.
There I have a single property named “Message” of type string.
using NServiceBus;
namespace NServiceBusScheduledTaskSample.Messages
{
public class MyMessage : ICommand
{
public string Message { get; set; }
}
}
After doing that, I am going to add references from both Server and Client to Messages project.
Again moving back to Server project, I am modifying the “Start()” method in “MyTask” as follows.
public void Start()
{
Schedule.Every(TimeSpan.FromSeconds(5)).Action(() =>
{
Bus.Send("NServiceBusScheduledTaskSample.Client", new MyMessage()
{
Message = "Hello World!"
});
Console.WriteLine("Sent a message.");
});
}
Schedule is a static class that can be accessed anywhere (in Version 4.x). So I am Scheduling a action in which I am doing a Bus.Send for every 5 seconds and as it’s parameters, I am passing my destination and my message to be sent.
Now inside my Client project, I am modifying the “EndpointConfig” as follows.
public class EndpointConfig : IConfigureThisEndpoint, AsA_Client
{
}
Instead of AsA_Server, I have changed it to AsA_Client. I can keep it as AsA_Server, it will still work here.
Now I am adding a new class named “MessageReceiver”. I am implementing an interface named “IHandleMessages<T>” on “MessageReceiver”. In this case it’s “IHandleMessages<MyMessage>”.
public class MessageReceiver : IHandleMessages<MyMessage>
{
public void Handle(MyMessage message)
{
Console.WriteLine(message.Message);
}
}
Now I am all set. Now since I need to run multiple projects, I am selecting multiple startup projects.
 |

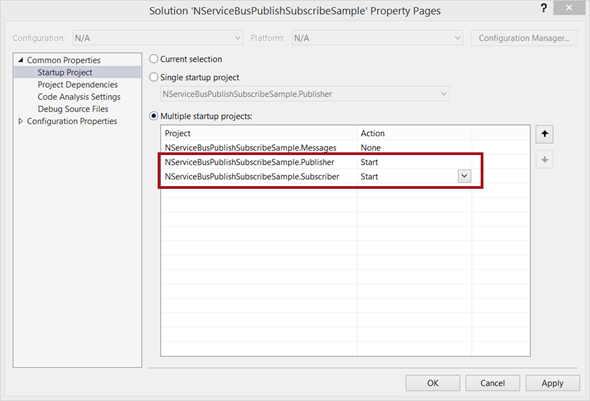

| Setting Startup Projects |
Now when I run the project, I am getting the following.
 |
| Result |
I am uploading the full sample to my OneDrive.
Happy Coding.
Regards,
Jaliya
