Friday, January 18, 2013

Apps for SharePoint : Map App (Bing Maps inside SharePoint) v1.0.0.1

After the initial release of “Map App”, with some major enhancements version 1.0.0.1 was released today. In this version the map control is powered with the latest Bing Maps design. In addition you will get the following new features in addition to previous version’s features.

New Features
  • Go to your favorite locations and save it in a SharePoint list.
  • View your saved locations in the map.
  • Manage locations in SharePoint List.
Untitled0
Map App
Untitled1
Search Locations
Untitled2
Add Locations
Untitled3
View Added Locationson Map
Untitled4
View Added Locations on List
Enjoy the app in your SharePoint 2013 environment and appreciate your feedback.

Happy Coding.

Regards,
Jaliya

Wednesday, January 16, 2013

Map App Privacy Policy

Map App Privacy Policy

The "Map App" SharePoint App Software Privacy policy protects the information collected from you via "Map App". Your privacy is extremely important to me. As a result, I have implemented this Privacy Policy to ensure the information that I collect from you over the Web is secure.

Personal Data

Through the "Map App", I will not collect any personal data about you (e.g. your name, address, telephone number or e-mail address).

Thank You.

Jaliya Udagedara

Tuesday, January 15, 2013

Apps for SharePoint : Map App (Bing Maps inside SharePoint) v1.0.0.0

I wanted to create an App for Office Store and Apps for sometime and thought to create an App for SharePoint which I named as “Map App”. “Map App” is mainly for searching and storing geographic locations while sitting inside SharePoint.

No offense Google, but Bing™ Maps is my favorite online mapping service and this app is developed using Bing Maps AJAX Control, Version 7.0. As this is the first version, this will only support searching for a particular location and getting the current location. Hoping to provide more features with the coming versions.
Map App v1.0.0.0 Features
Untitled4
Map App (New )
Untitled0
Map App Home
Untitled1
Get My Location
Untitled2
My Location
Untitled3
Search Location
Enjoy the app in your SharePoint 2013 environment and appreciate your feedback.

Happy Coding.

Regards,
Jaliya

Thursday, January 10, 2013

Forms Authentication with Multiple Login Pages

Have you ever come across a situation where you want to have multiple login pages with Forms Authentication.  Forms Authentication directly supports one login page, but there is a work around. Today we will see how to achieve this.

For an example let’s say you want two login pages where one is for administrators and other is for customers.

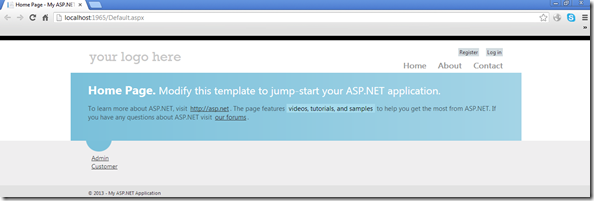

Default.aspx
When the user clicks on Admin, he should be redirected to administrators’  content where the user will have to authenticate himself as an administrator. When the user clicks on Customer, he will be redirected  to customers’ content again where the user will have to authenticate himself as a customer. Administrators login page will have some different content and customers login page will have some other.

Admin Login Page

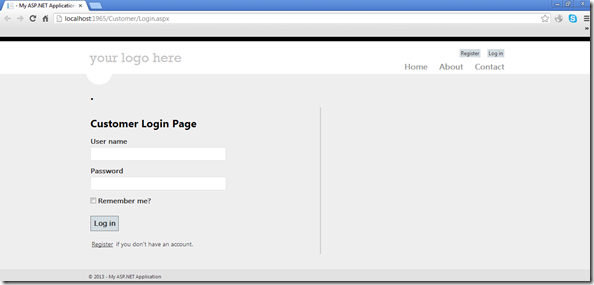

Customer Login Page
I have a web application and I have two folders inside my project. One is for Administrators and the other is for Customers. I will create a login page and a sample page inside Admin folder and create another login page and a sample page inside Customer folder. Here is what I have after completing previous steps.

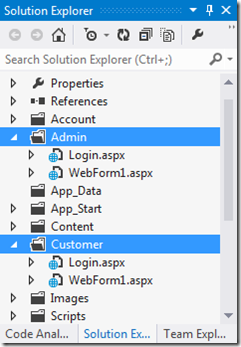

Folders inside Solution Explorer

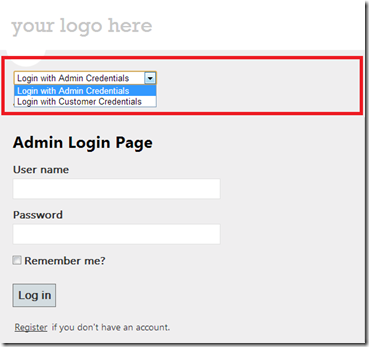

For demonstration purposes in my admin login page I have a drop down where I can select which type of credentials I am going to try in admin login. If login with admin credentials I should be able to see admin content. If I login with customer credentials, I should prompted with admin login again.
Admin Login Page
In my admin login button click event I have following code.
protected void Button1_Click(object sender, EventArgs e)
{
    string userData = "";
    string userName = "";

    if (DropDownList1.SelectedIndex == 0) // admin
    {
        userData = "Admin"; // set userData
        userName = "Admin User Name";
    }
    else if (DropDownList1.SelectedIndex == 1) //customer
    {
        userData = "Customer"; // set userData
        userName = "Customer User Name";
    }

    // initialize FormsAuthentication
    FormsAuthentication.Initialize();

    // create a new ticket used for authentication
    FormsAuthenticationTicket authTicket = new FormsAuthenticationTicket(1, userName, DateTime.Now, DateTime.Now.AddMinutes(15), false, userData);

    // encrypt the cookie using the machine key for secure transport
    string encTicket = FormsAuthentication.Encrypt(authTicket);

    // create and add the cookies to the list for outgoing response
    HttpCookie faCookie = new HttpCookie(FormsAuthentication.FormsCookieName, encTicket);

    Response.Cookies.Add(faCookie);

    Response.Redirect("/Admin/WebForm1.aspx");
}
Next I am modifying the global.asax file. I am adding the “Application_AuthenticateRequest” event.
protected void Application_AuthenticateRequest(object sender, EventArgs e)
{
    if (HttpContext.Current.User != null)
    {
        if (HttpContext.Current.User.Identity.IsAuthenticated)
        {
            if (HttpContext.Current.User.Identity is FormsIdentity)
            {
                //HttpCookie cookie = HttpContext.Current.Request.Cookies["UserRole"];
                FormsIdentity id = (FormsIdentity)HttpContext.Current.User.Identity;
                FormsAuthenticationTicket ticket = id.Ticket;

                // get the stored user-data, in this case it's our users' role information
                string userData = ticket.UserData;
                string[] roles = userData.Split(',');
                HttpContext.Current.User = new GenericPrincipal(id, roles);
            }
        }
    }
}
Now I am modifying the “web.config” file as follows.
<authentication mode="Forms">
   <forms name="LoginCookie" loginUrl="Login.aspx" protection="None" path="/" defaultUrl="Login.aspx" timeout="30" />
</authentication>
<authorization>
   <deny users="?" />
</authorization>
Now I need to secure directories with role based Forms Authentication. For that again I am modifying the “web.config” file as follows.
<!--for admin folder allow users having the role 'Admin' and deny other-->
<location path="Admin" allowOverride="true">
    <system.web>
        <authorization>
            <allow roles="Admin" />
            <deny users="*"/>
        </authorization>
    </system.web>
</location>

<!--for content folder allow all-->
<location path="Content" allowOverride="true">
    <system.web>
        <authorization>
            <allow users="*" />
        </authorization>
    </system.web>
</location>

<!--for scripts folder allow all-->
<location path="Scripts" allowOverride="true">
    <system.web>
        <authorization>
            <allow users="*" />
        </authorization>
    </system.web>
</location>

<!--for images folder allow all-->
<location path="Images" allowOverride="true">
    <system.web>
        <authorization>
            <allow users="*" />
        </authorization>
    </system.web>
</location>

<!--for login.aspx allow all-->
<location path="Login.aspx" allowOverride="true">
    <system.web>
        <authorization>
            <allow users="*"/>
        </authorization>
    </system.web>
</location>

<!--for default.aspx allow all-->
<location path="Default.aspx" allowOverride="true">
    <system.web>
        <authorization>
            <allow users="*"/>
        </authorization>
    </system.web>
</location>

<!--for Admin/Login.aspx allow all-->
<location path="Admin/Login.aspx" allowOverride="true">
    <system.web>
        <authorization>
            <allow users="*"/>
        </authorization>
    </system.web>
</location>

<!--for Customer/Login.aspx allow all-->
<location path="Customer/Login.aspx" allowOverride="true">
    <system.web>
        <authorization>
            <allow users="*"/>
        </authorization>
    </system.web>
</location>
As you saw above loginUrl in the forms element can be only one. So I have created a page inside root called “Login” and I am not interested in the design of that page. Just in Page_Load event I am writing the following code. In here what I am doing is, when the main login page is loading it will identify the request type (admin or customer) by analysing the url and redirect to the relevant login page.
protected void Page_Load(object sender, EventArgs e)
{
    char[] character = { '/' };

    if (Request["ReturnUrl"] != null)
    {
        // Request["ReturnUrl"].ToString() ->
        // http://localhost:1965/Admin/Login.aspx;
        // http://localhost:1965/Customer/Login.aspx

        string[] strs = Request["ReturnUrl"].Split(character);

        // if the second part is Admin go to admin login
        if (strs[1] == "Admin")
        {
            Response.Redirect(@"/Admin/Login.aspx");
        }
        // if the second part is Customer go to customer login
        else if (strs[1] == "Customer")
        {
            Response.Redirect(@"/Customer/Login.aspx");
        }
    }
}
Now I am all set. In my Default.aspx, I have two hyperlinks for admin content and customer content.
<asp:HyperLink ID="HyperLink1" runat="server" NavigateUrl="~/Admin/WebForm1.aspx">Admin</asp:HyperLink>
<br />
<asp:HyperLink ID="HyperLink2" runat="server" NavigateUrl="~/Customer/WebForm1.aspx">Customer</asp:HyperLink>
So in the admin login when I logged in with admin credentials I can see the admin content. If I logged in with customer credentials I will be redirected to admin login page again.

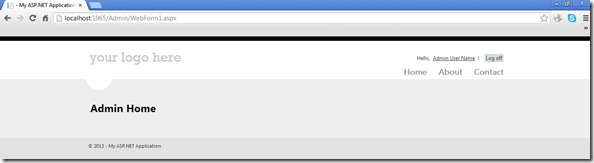

Admin Can View Admin Content
Customer Can't View Admin Content
I am not going to show you how to do this for the customer’s login page. The concept is the same. You can download the sample project from my skydrive and try this out.

Hope this helps.

Happy Coding.

Regards,
Jaliya
